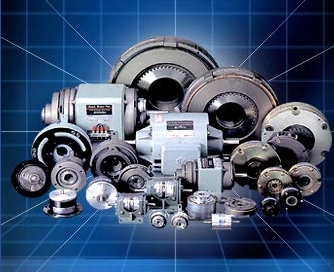

OGURA CLUTCH, OGURA BRAKE, OGURA POWER UNIT

Founded in 1938, Ogura is the world's largest manufacturer of electromagnetic clutches and brakes. We produce over 25 million per year. Ogura is known for high quality products and continuous innovation. We are ISO 9001-2000, 14001 and ISO/TS 16949. With over 3,000 models in production and 13 manufacturing plants around the world, Ogura is sure to meet your specific product needs.

All Products OGURA MIC Electromagnetic Clutch (Torque Range: 2~7in-lbs / 0.25~0.8Nm) Small clutches for use in copy machines, printers, and other peripheral devices. This one-piece assembly features a custom-molded gear or timing pulley designed to your specifications. Most clutches use a permanent magnet to disengage the armature when it is not in use. All clutches are bi-directional. Product Details OGURA AMC Electromagnetic Clutch (Torque Range: 2~70in-lbs / 0.25~8Nm) Clutch designed for general industrial use. Clutches are designed with zero backlash armatures and a double ball bearing field support to provide longer life and better performance versus bushing style units. Product Details AMB Electromagnetic Brake (Torque Range: 2~70in-lbs / 0.25~8Nm) Brake designed for general industrial application units feature zero backlash, armature hub, and field assemblies that can accommodate bearings for additional shaft support. Product Details VC Electromagnetic Clutch (Torque Range: 4~44 ft-lbs / 6~60Nm) Clutch designed for general industrial applications. Units come standard with zero backlash armature. Units are normally produced in a high torque version but a lower torque is also available which reduces the overall length of the clutch by 15%. Options for this unit include an automatic air gap that adjusts as the clutch wears, a quiet armature option that reduces clutch engagement noise for application in hospitals or offices and a 1 piece designed option that simplifies mounting. Product Details OGURA VB Electromagnetic Brake (Torque Range: 5~44ft-lbs / 7~60Nm) Brake designed for general industrial applications. Units come standard with zero backlash armature. Units are normally produced in a high torque version but a lower torque is also available which reduces the overall length of the clutch by 15%. Options for this unit include an automatic air gap that adjusts as the clutch wears, a quiet armature option that reduces clutch engagement noise for application in hospitals or offices and a 1 piece designed option that simplifies mounting. Product Details CT Electromagnetic Clutch (Torque Range: 8~150ft-lbs / 11~203Nm) Clutch is designed for general industrial use. Clutches are dimensionally interchangeable with popular competitors' units. Clutches use stainless steel hubs to break up residual magnetism and reduce the chance of corrosion. Patented automatic adjustment for wear allows consistent stop times over the life of the unit. Armature design allows for excellent heat dissipation. Screw terminals come with optional terminal cover for hard wire connections. Product Details B Electromagnetic Brake (Torque Range: 8~150ft-lbs / 11~203Nm) Brake designed for general industrial use. Brakes are dimensionally interchangeable with popular competitors' units. Brakes use stainless steel hubs to help reduce residual magnetism and reduce the chance of corrosion. Patented automatic adjustment for wear allows consistent stop times over the life of the unit. Armature design allows for excellent heat dissipation. Screw terminals come with optional terminal cover for hard wire connections. Product Details OGURA TMB Electromagnetic Brake (Torque Range: 4~147ft-lbs / 6~200Nm) Brake is designed for general industrial use. Low inertia zero backlash armature can be bolted to your hub. Brake can be supplied with internal or external hub depending upon overall length restrictions. Product Details OGURA TMC Electromagnetic Clutch (Torque Range: 4~147ft-lbs / 6~200Nm) Clutch designed for general industrial use. Compact design with a thin overall profile. Zero backlash armatures can be built into custom hubs. Clutches are available with bearing supported field or a (no bearing) flange field. Product Details MMC Electromagnetic Clutch (Torque Range: 37~1475ft-lbs / 50~2000Nm) Heavy duty clutches best suited for marine and mobile applications. Bi-directional spring resists engine vibration and shock. Output can be modified to meet your requirement, or clutch can be purchased with armature only to bolt into your hub. Product Details AMU-C Electromagnetic Clutch/Brake (Torque Range: 2~70in-lbs / 0.25~8Nm) Clutch/brake units are designed for general industrial use. Unit features die cast housing with double bearing support on the input and the output shafts. Units come standard with zero backlash armatures but can be modified for high cycle applications using a zero gap armature. Modular simple 1 piece construction means no adjustments required. Clear plastic cover allows you to see inside the unit without having to remove the cover. Product Details OGURA VSAU Electromagnetic Clutch/Brake (Torque Range: 9~37ft-lbs / 12~50Nm) Clutch/brake combination unit designed for general design applications. Both with input and output shafts have independent double bearing support. Housing includes external heat sinks for better heat dissipation and an easily accessible external mounted wiring block. Product Details MP Electromagnetic Clutch/Brake (Torque Range: 4~443in-lbs / 0.5~50Nm) Clutch/brake units are designed for extremely fast response, a high cycles applications. Because of a special no gap armature design, there is no need to adjust for wear. Units are self adjusting and there is a consistent time to speed and time to stop. Low inertia components and low voltage fields allow for very fast response time. Small units are designed with finned housings to provide superior cooling. Additional friction materials like ceramics can be used to significantly increase overall cycle life. Product Details MZ Electromagnetic Tooth Clutch (Torque Range: 18~2950ft-lbs / 25~4000Nm) Clutch is designed for high torque small space environments where no slip is desired. Clutch can be used dry or in an oil bath. A zero backlash option is available. Zero drag torque when clutch is disengaged. Product Details OGURA MZS Electromagnetic Single-Position Tooth Clutch (Torque Range: 18~184ft-lbs / 25~250Nm) Clutch is designed for high torque small space environments where no slip and only a single engagement position is desired. Clutch can be used dry or in an oil bath. A zero backlash option is available. Zero drag torque when clutch is disengaged. Product Details MCNB Electromagnetic Spring-Applied Brake (Torque Range: 1.8~8.9in-lbs / 0.2~1Nm) Small spring applied brake available with either D hub designs or set screws. Standard voltages are 24 and 45 but other voltage options are available. Units are designed to give 100% rated torque right out of the box. No burnishings required. Product Details FNB Electromagnetic Spring Applied Brake (Torque Range: 9 ~ 71 in-lbs/1~ 8 N-m) A small spring applied brake with a very thin profile which is mainly used for robotic and ball screw applications. This brake does not come with a hub so customers have flexibility with integrating the brake to their machine by providing their own hub. Product Details OGURA RNB-Z Electromagnetic Zero-Backlash Spring-Applied Brake (Torque Range: 1.5~12ft-lbs / 2~16Nm) Spring applied holding brake designed for general industrial applications. Unit is used for holding only and has special zero backlash armature. Very thin brake profile provides a compact package. Braking force is produced via springs so basic fluctuations in voltage and temperature have no effect on the brake. Long life friction material allows for many trouble free cycles. Standard voltages are 24 and 90 volts. Other voltage options are available. Product Details SNB Electromagnetic Spring-Applied Brake (Torque Range: 0.7~74ft-lbs / 1~100Nm) Spring applied holding brake designed for general industrial applications. Unit is used for both stopping and/or holding. Very thin brake profile provides a compact package. Braking force is produced via springs so basic fluctuations in voltage and temperature have no effect on the brake. Long life friction material allows for many trouble free cycles. Standard voltages are 24 and 90 volts. Other voltage options are available. Product Details OGURA RNB Electromagnetic Spring-Applied Brake (Torque Range: 1.5~148ft-lbs / 2~200Nm) Spring applied holding brake designed for general industrial applications. Unit is used for holding only. Very thin brake profile provides a compact package. Braking force is produced via springs so basic fluctuations in voltage and temperature have no effect on the brake. Long life friction material allows for many trouble free cycles. Standard voltages are 24 and 90 volts. Other voltage options are available. Product Details OGURA MNB Electromagnetic Spring-Applied Brake (Torque Range: 1.5~590ft-lbs / 2~800Nm) Spring applied brake used for industrial applications. Units are designed for stopping and/or holding. MNB units 1.2 and higher have adjustable torque feature. Torque of the brake can be fine tuned by you to fit your exact needs. Bolt holes for manual bolt release included on standard units. Optional manual lever releases available by special order. Product Details OGURA PMB Electromagnetic/Permanent-Magnet Brake *North America only* (Torque Range: 3.5~265in-lbs / 0.4~30Nm) Permanent magnet brake designed for industrial and mobile applications. Brake force is produced via magnets which reduces both size and weight of brake versus spring applied brakes. Armature is mounted via springs which eliminates backlash. Standard brakes can accommodate temperatures up to 140deg C. Brakes can be tuned to provide a controlled stop. Output assemblies easily modified to fit your application. Product Details OGURA PHT Permanent-Magnet Hysteresis Clutch/Brake (Torque Range: 0~62in-lbs / 0~7Nm) Permanent magnet hysteresis units can be configured as a clutch or a brake depending upon mounting. Torque is accurate and dependable because it is produced magnetically, not via friction. Torque is consistent over a given speed range. Because there is no wear, units have an extremely long life. Also since units are sealed, there is no concern about contamination. Each unit has an adjustable torque range that can be set by the user and since the units operate via permanent magnets, no external controls or power is required. Product Details OGURA PET Permanent-Magnet Eddy-Current Clutch/Brake (Torque Range: 0.18~8.9in-lbs / 0.02~1Nm) Eddy current clutch, torque is proportional to rpm. Since torque is transmitted magnetically, units are unaffected by friction and wear and also no external power is needed since units power is self generated. Units are sealed so there is no contamination. Both vertical and horizontal mounting is possible. Product Details HB Electromagnetic Hysteresis Brake (Torque Range: 0.4~8.9in-lbs / 0.05~1Nm) Hysteresis brake for industrial application. Torque is independent of slip speed and can be easily controlled by varying the current. Since there is no frictional contact between the magnets, the units have an extremely wide torque range and are ideally suited for testing machinery and/or application that are required to produce consistent and smooth torque over a wide range. Product Details OGURA HC Electromagnetic Hysteresis Clutch (Torque Range: 0.4~8.9in-lbs / 0.05~1Nm)) Hysteresis clutch for industrial application. Torque is independent of slip speed and can be easily controlled by varying the current. Since there is no frictional contact between the magnets, the units have an extremely wide torque range and are ideally suited for testing machinery and/or application that are required to produce consistent and smooth torque over a wide range. Product Details MDC Electromagnetic Multiple-Disk Clutch (Torque Range: 13~6196ft-lbs / 18~8400Nm) Multiple disk clutches designed for high torque small space environment. Multiple disks produce high torque in a compact design. Separate drive cup allows for easy connection to your gear or pulley. Product Details OGURA MDB-N Electromagnetic Multiple-Disk Brake (Torque Range: 13~826ft-lbs / 18~1120Nm) Multiple disk brakes designed for high torque small space environment. Multiple disks produce high torque in a compact design.Product Details MWC Electromagnetic Multiple-Disk Clutch (Torque Range: 18~8851ft-lbs / 25~12000Nm) Multiple disk clutches designed for high torque small environment. Clutches are designed to work in oil Multiple disks produce high torque in a compact design. Separate drive cup allows for easy connection to your gear or pulley. Special oil path grooves in the friction plastes allow for quick engagement and response time. Because clutches are used in oil lubrication they have excellent heat dissipation. Product Details MWB Electromagnetic Multiple-Disk Brake (Torque Range: 18~2360ft-lbs / 24~3200Nm) Multiple disk brake designed for high torque small environment. Brakes are designed to work in oil. Multiple disks produce high torque in a compact design. Special oil path grooves in the friction plastes allow for quick engagement and response time. Because brakes are used in oil lubrication they have excellent heat dissipation. Product Details OPL Permanent-Magnet Mag-Particle Slip Clutch (Torque Range: 0.27~3.5in-lbs / 0.03~0.4Nm) Low cost slip clutch design for momentary and/or continuous slipping. Torque is produced magnetically eliminating the possibility of high break away torque that occurs within typical friction devices. Torque is consistent over a given speed range. Units are sealed so that internal particles cannot contaminate machine likewise external particles cannot contaminate the OPLs. Units are supplied with stainless steel shafts, which can be customized to meet your needs. (The OPR units are hollow bore mounted.) Product Details OGURA OPC Electromagnetic Mag-Particle Clutch (Torque Range: 4.4~71in-lbs / 0.5~8Nm) Magnetic particle clutch designed for industrial applications requiring fast response time and a stable torque. Units can also be set for continuous slip which makes them ideal for tension applications. Since voltage to torque is linear, output torque can be easily controlled. Since torque is also transmitted via internal particles, unit life is extremely long. Product Details OPB-N Electromagnetic Mag-Particle Brake (Torque Range: 4.4~71in-lbs / 0.5~8Nm) Magnetic particle brake designed for industrial applications requiring fast response time and a stable torque. Units can also be set for continuous slip which makes them ideal for tension applications. Since voltage to torque is linear, output torque can be easily controlled. Since torque is also transmitted via internal particles, unit life is extremely long. Product Details PC Electromagnetic Mag-Particle Clutch (Torque Range: 8.8~144ft-lbs / 12~195Nm) Magnetic particle clutch designed for industrial applications requiring fast response time and a stable torque. Units can also be set for continuous slip which makes them ideal for tension applications. Since voltage to torque is linear, output torque can be easily controlled. Since torque is also transmitted via internal particles, unit life is extremely long. Product Details OGURA PB Electromagnetic Mag-Particle Brake (Torque Range: 8.8~144ft-lbs / 12~195Nm) Magnetic particle brake designed for industrial applications requiring fast response time and a stable torque. Units can also be set for continuous slip which makes them ideal for tension applications. Since voltage to torque is linear, output torque can be easily controlled. Since torque is also transmitted via internal particles, unit life is extremely long.

OGURA MIC-2.5 0 2.2 6mm 24/3.4 D-cut 0.11 MIC-2.5 0 2.2 6mm 24/3.4 D-cut 0.11 MIC-5 0 4.4 8mm 24/3.7 D-cut 0.20 MIC-8

OGURA AMC-2.5 25144500 2.2 6mm 24/3 2x0.9 0.30 AMC-5 25144600 4.4 6mm 24/4 2x0.9 0.40 AMC-10 25144700 8.9 8mm 24/6 2.5x0.9 0.60 AMC-40 25144900 35 12mm 24/9 4x1.5 1.60 AMC-80 25145000 71 15mm 24/11.5 5x2 2.30 AMC-20

OGURA AMB-2.5 25145100 2.2 6mm 24/3 2mm width 0.30 AMB-5 25145200 4.4 6mm 24/4 2mm width 0.40 AMB-10 25145300 8.9 8mm 24/6 2.5mm width 0.60 AMB-40 25145500 35 12mm 24/9 4mm width 1.60 AMB-80 25145600 71 15mm 24/11.5 5mm width 2.30 AMB-20

OGURA VCE-10 23784800 74 30mm 24/38 8x3.3 12.80 VCE-20 23784900 147.5 40mm 24/53 12x3.3 23.80 VF Cooling Fan 0 0 0.00 VCEH-5P 23646500 43.4 25mm 24/33 8x3.3 10.79 VCEH-0.6 23655100 5.1 12mm 24/14 4x1.8 1.30 VCEH-1.2 23655900 10.8 15mm 24/17 5x2.3 2.42 VCEH-2.5 23656700 21.7 20mm 24/25 6x2.8 4.90 VCEH-5 23657500 43.4 25mm 24/33 8x3.3 7.90 VCEHA-1.2 23660500 10.8 15mm 24/17 5x2.3 3.08 VCEHA-2.5 23660600 21.7 20mm 24/25 6x2.8 5.73 VCEHA-5 23660700 43.4 25mm 24/33 8x3.3 10.13 VCEH-1.2P 23674900 10.8 15mm 24/17 5x2.3 3.74 VCEH-2.5P

OGURA VBE-10 23785000 73.8 N/A 24/38 8.20 VBE-20 23785100 147.5 N/A 24/53 15.40 VF Cooling Fan 0 0 0.00 VBEH-0.6 23655500 5.1 N/A 24/12 N/A 0.82 VBEH-1.2 23656300 10.8 N/A 24/18 N/A 1.41 VBEH-2.5 23657100 21.7 N/A 24/22 N/A 2.64 VBEH-5 23657900 43.4 N/A 24/33 N/A 4.85 VBEHA-1.2 23660900 10.8 15mm 24/18 5x2.3 2.20 VBEHA-2.5 23661000 21.7 20mm 24/22 6x2.8 4.19 VBEHA-5 23661100 43.4 25mm 24/33 8x3.3 8.15 VBEH-1.2P 23675100 10.8 15mm 24/18 5x2.3 2.64 VBEH-2.5P 23675900 21.7 20mm 24/22 6x2.8 4.63 VBEH-5P

OGURA CT-20 0 20 1/2, 5/8, 3/4, 7/8 90V, 28V, 24V, 6V Standard 9.20 CT-50 0 50 1-1/8, 1-1/4, G bush 90V, 24V, 6V Standard 14.62 CT-100 0 100 H bushing 90V, 6V Standard 26.02 CT-150 0 150 H bushing 90V, 6V Standard 44.20 CT-8

OGURA B-20 0 20 1/2, 5/8, 3/4, 7/8, 90V, 24V, 6V Standard 4.00 B-50 0 50 1-1/8, 1-1/4, G bush 90V, 6V Standard 6.24 B-100 0 100 H bushing 90V, 6V Standard 9.07 B-150 0 150 H bushing 90V, 6V Standard 16.05 B-8

OGURA TMB-1.2 23431500 8.8 N/A 24/4 N/A 1.50 TMB-1.2H 23431600 8.8 15mm 24/15 5x2 2.00 TMB-2.5 23431700 18.4 N/A 24/6 N/A 2.60 TMB-2.5H 23431800 18.4 20mm 24/22 5x2 3.50 TMB-5 23431900 36.9 N/A 24/6.1 N/A 4.40 TMB-5H 23432000 36.9 25mm 24/33 7x3 6.00 TMB-10 23432100 73.7 N/A 24/9 N/A 8.10 TMB-10H 23432200 73.7 30mm 24/38 7x3 11.00 TMB-20 23432300 147.5 N/A 24/11.5 N/A 15.40 TMB-20H 23432400 147.5 40mm 24/53 10x3.5 21.30 TMB-1.2HI 23460300 8.8 15mm 24/15 5x2 2.00 TMB-2.5HI 23460400 18.4 20mm 24/22 5x2 3.50 TMB-5HI 23460500 36.9 25mm 24/33 7x3 6.00 TMB-10HI 23460600 73.7 30mm 24/38 7x3 11.00 TMB-20HI 23460700 147.5 40mm 24/53 10x3.5 21.30 TMB-0.6 23473300 4.4 N/A 24/3 N/A 0.70 TMB-0.6H 23476400 4.4 12mm 24/12 4x1.5 0.90 TMB-0.6HI

OGURA TMC-1.2 23430500 8.8 15mm 24/15 5x2 2.20 TMC-2.5 23430700 18.4 20mm 24/22 5x2 4.00 TMC-5 23430900 36.9 25mm 24/33 7x3 7.30 TMC-10 23431100 73.7 30mm 24/35 7x3 13.00 TMC-20 23434300 147.5 40mm 24/50 10x3.5 24.00 TMF-1.2 23456800 8.8 15mm 24/15 5x2 2.20 TMF-2.5 23456900 18.4 20mm 24/22 5x2 4.00 TMF-5 23457000 36.9 25mm 24/33 7x3 6.60 TMF-10 23457100 73.7 30mm 24/35 7x3 13.00 TMF-20 23457200 147.5 40mm 24/50 10x3.5 25.00 TMC-0.6 23473200 4.4 12mm 24/12 4x1.5 1.10 TMF-0.6

OGURA MMC-5E 23368900 36.9 25mm 12/30 7x3 7.50 MMC-10E 23369000 73.7 30mm 12/35 7x3 15.00 MMC-20E 23369100 147.5 40mm 12/50 10x3.5 26.00 MMC-40E 23369200 295 50mm 12/65 15x5 43.00 MMC-70E 23369300 516 60mm 12/90 15x5 70.00 MMC-100E 23369400 737 70mm 12/100 18x6 104.00 MMC-200G

OGURA AMU-2.5C 25255900 2.2 6mm shaft 24/3 2mm width 0.90 AMU-5C 25256000 4.4 6mm shaft 24/4 2mm width 1.20 AMU-10C 25256100 8.9 8mm shaft 24/6 2.5mm width 2.00 AMU-20C 25256200 18 10mm shaft 24/6.1 4mm width 3.30 AMU-40C 25256300 35 12mm shaft 24/9 4mm width 4.50 AMU-80C

OGURA VSAU-1.2 23700600 8.8 15mm shaft 24/15 5mm width 10.50 VSAU-2.5 23700700 18.4 20mm shaft 24/22 6mm width 18.00 VSAU-5

OGURA MP-10 23208400 8.9 8mm shaft 1.06/5.3 2.5mm width 2.00 MP-5 23215300 4.4 6mm shaft 0.76/3.8 2mm width 1.20 MP-20 23215400 18 10mm shaft 1.4/7 4mm width 3.30 MP-40 23215500 35 12mm shaft 1.66/8.3 4mm width 4.60 MP-80 23215600 71 15mm shaft 2.4/12 5mm width 6.40 MP-120 23215700 106 15mm shaft 5/15 5mm width 11.00 MP-250 23215800 221 20mm shaft 5/25 5mm width 17.60 MP-500

OGURA MZ-2.5W 23293200 18 20mm 24/15 5x2 3.30 MZ-5W 23293300 36 25mm 24/23 7x3 4.40 MZ-10W 23293400 73 30mm 24/30 7x3 6.60 MZ-16W 23293500 116 35mm 24/35 10x3.5 8.80 MZ-25W 23293600 181 40mm 24/40 10x3.5 11.00 MZ-50W 23293700 362 50mm 24/50 12x3.5 18.70 MZ-2.5D 23479900 18 20mm 24/15 5x2 3.30 MZ-5D 23480000 36 25mm 24x23 7x3 4.40 MZ-10D 23480100 73 30mm 24/30 7x3 6.60 MZ-16D 23480200 116 35mm 24/34 10x3.5 8.80 MZ-25D 23480300 181 40mm 24/40 10x3.5 11.00 MZ-50D 23480400 362 50mm 24/50 12x3.5 18.70 MZ-100 23575800 725 60mm 24/65 15x5 37.50 MZ-160 23575900 1159 70mm 24/80 18x6 55.10 MZ-250 23576000 1812 90mm 24/90 24x8 77.10 MZ-400

OGURA MZS-2.5D 23596400 18 20mm 24/15 5x2 3.30 MZS-5D 23596500 36 25mm 24/23 7x3 4.40 MZS-10D 23596600 73 30mm 24/30 7x3 6.60 MZS-16D 23596700 116 35mm 24/35 10x3.5 8.80 MZS-25D

OGURA MCNB-2G (24V) [Old Type] 25244500 1.8 8mm 24/5 Set-screw only 0.40 MCNB-5G (24V) [Old Type] 25244600 4.4 8mm 24/7 Set-screw only 0.60 MCNB-10G (24V) [Old Type] 25244700 8.9 10mm 24/9 Set-screw only 0.90 MCNB-2H (45V) [Old Type] 25249400 1.8 8mm 45/5 Set-screw only 0.40 MCNB-5H (45V) [Old Type] 25249900 4.4 8mm 45/7 Set-screw only 0.60 MCNB-10H (45V) [Old Type] 25250400 8.9 10mm 45/9 Set-screw only 0.90 MCLB-5G (24V) 25291400 4.4 8mm 24/7 D-cut 0.00 MCLB-5H (45V) 25317200 4.4 8mm 45/7 D-cut 0.00 MCNB-2GR (holding, 24V) [New Type] 25332000 1.8 8mm 24/4.2 D-cut 0.00 MCNB-2GS (stopping, 24V) [New Type] 25333400 1.8 8mm 24/4.2 D-cut 0.00 MCNB-2KR (holding, 90V) [New Type] 25334000 1.8 8mm 90/4.2 D-cut 0.00 MCNB-2KS (stopping, 90V) [New Type] 25334400 1.8 8mm 90/4.2 D-cut 0.00 MCNB-10GR (holding, 24V) [New Type] 25334800 8.9 10mm 24/7 D-cut 0.00 MCNB-10GS (stopping, 24V) [New Type] 25336300 8.9 10mm 24/7 D-cut 0.00 MCNB-10KR (holding, 90V) [New Type] 25336800 8.9 10mm 90/7 D-cut 0.00 MCNB-10KS (stopping, 90V) [New Type] 25337300 8.9 10mm 90/7 D-cut 0.00 MCNB-5GR (holding, 24V) [New Type] 25337600 4.4 8mm 24/6.5 D-cut 0.00 MCNB-5GS (stopping, 24V) [New Type] 25339000 4.4 8mm 24/6.5 D-cut 0.00 MCNB-5KR (holding, 90V) [New Type] 25339600 4.4 8mm 90/6.5 D-cut 0.00 MCNB-5KS (stopping, 90V) [New Type]

OGURA FNB-0.1G 0 9 18mm 24/10 1.10 FNB-0.1K 0 9 18mm 90/10 1.10 FNB-0.2G 0 18 18mm 24/13 1.40 FNB-0.2K 0 18 18mm 90/13 1.40 FNB-0.4G 0 35 24mm 24/15 2.00 FNB-0.4K 0 35 24mm 90/15 2.00 FNB-0.8G 0 71 38mm 24/18 3.10 FNB-0.8K

OGURA RNB-0.2ZG 23614300 1.5 12mm 24/10 4x13.5 1.30 RNB-0.2ZK 23614400 1.5 12mm 90/10 4x13.5 1.30 RNB-0.4ZG 23614500 3 12mm 24/13 4x13.5 1.90 RNB-0.4ZK 23614600 3 12mm 90/13 4x13.5 1.90 RNB-0.8ZG 23614700 6 14mm 24/15 5x16 1.90 RNB-0.8ZK 23614800 6 14mm 90/15 5x16 2.60 RNB-1.6ZG 23614900 12 15mm 24/18 5x17 4.20 RNB-1.6ZK

OGURA SNB-0.2K (90V) 23534000 1.5 12mm 90/13 4x1.5 1.76 SNB-0.4K (90V) 23534100 3 14mm 90/15 5x2 2.40 SNB-0.8K (90V) 23534200 6 19mm 90/18 5x3 4.00 SNB-0.2G (24V) 23534300 1.5 12mm 24/13 4x1.5 1.76 SNB-0.4G (24V) 23534400 12 14mm 12/18 5x2 2.40 SNB-0.8G (24V) 23534500 6 19mm 24/18 5x3 4.00 SNB-0.1K (90V) 23541300 0.7 12mm 90/10 4x1.5 1.20 SNB-0.1G (24V) 23542400 0.7 12mm 24/10 4x1.5 1.20 SNB-1.2K (90V) 23561600 9 19mm 90/22 5x3 7.70 SNB-1.2G (24V) 23561700 9 19mm 24/22 5x3 7.70 SNB-2.5K (90V) 23561800 18 24mm 90/27 7x3 11.20 SNB-2.5G (24V) 23561900 18 24mm 24/27 7x3 11.20 SNB-5K (90V) 23562000 36 28mm 90/33 7x3 17.40 SNB-5G (24V) 23562100 36 28mm 24/33 7x3 17.40 SNB-10K (90V) 23562200 72 32mm 90/45 10x3.5 27.80 SNB-10G (24V)

OGURA RNB-0.2G (24V) 23539200 1.5 12mm 24/10 4x1.5 1.30 RNB-0.4G (24V) 23539300 3 12mm 24/13 4x1.5 1.90 RNB-0.8G (24V) 23539400 6 14mm 24/15 5x2 2.60 RNB-1.6G (24V) 23539500 12 19mm 24/18 5x2 4.20 RNB-0.2K (90V) 23539600 1.5 12mm 90/10 4x1.5 1.30 RNB-0.4K (90V) 23539700 3 12mm 90/13 4x1.5 1.90 RNB-0.8K (90V) 23539800 6 14mm 90/15 5x2 2.60 RNB-1.6K (90V) 23539900 12 19mm 90/18 5x3 4.20 RNB-3K (90V) 23562400 22 19mm 90/22 5x3 7.90 RNB-3G (24V) 23562500 22 19mm 24/22 5x3 7.90 RNB-5K (90V) 23562600 36 24mm 90/27 7x3 11.40 RNB-5G (24V) 23562700 36 24mm 24/27 7x3 11.40 RNB-10K (90V) 23562800 74 28mm 90/33 7x3 17.40 RNB-10G (24V) 23562900 74 28mm 24/33 7x3 17.40 RNB-20K (90V) 23563000 144 32mm 90/45 10x3.5 27.00 RNB-20G (24V)

OGURA No. Ogura P/N Static Torque (ft-lbs) Bore (inch) Volts/ Watts Keyway Wgt (lbs) PIC PDF DXF MNB-1.2K (90V) 23364500 9 19mm 24/24 5x3 7.30 MNB-2.5K (90V) 23364600 18 24mm 90/35 7x3 11.00 MNB-5K (90V) 23364700 36 28mm 90/42 7x31 16.00 MNB-10K (90V) 23364800 72 32mm 90/53 10x3.5 24.00 MNB-20K (90V) 23364900 144 42mm 90/53 12x3.5 41.00 MNB-0.2K (90V) 23391000 1.5 12mm 90/13.5 4x1.5 1.80 MNB-0.4K (90V) 23391100 3 14mm 90/15.5 5x2 2.20 MNB-0.8K (90V) 23391200 6 19mm 90/20 5x3 3.30 MNB-40K (90V) 23486700 288 55mm 90/98 16x5 76.00 MNB-80K (90V) 23507000 590 65mm 90/130 18x6 136.00 MNB-5G (24V) 23523000 36 28mm 24/42 7x31 16.00 MNB-0.8G (24V) 23523600 6 19mm 24/19 5x3 3.30 MNB-1.2G (24V) 23523700 9 19mm 24/24 5x3 7.30 MNB-0.2G (24V) 23523900 1.5 12mm 24/12 4x1.5 1.80 MNB-0.4G (24V) 23524000 3 14mm 24/15.5 5x2 2.20 MNB-2.5G (24V) 23524100 18 24mm 24/39 7x3 11.00 MNB-10G (24V) 23524200 72 32mm 24/53 10x3.5 24.00 MNB-20J (72V) 23526900 144 42mm 72/70 12x3.5 41.00 MNB-40J (72V) 23527000 288 55mm 72/94 16x5 76.00 MNB-80J (72V)

OGURA PMB-03 0 3.5 Max 8mm 24/6 0.18 PMB-04 0 11 Max 8mm 24/8 0.36 PMB-05 0 22 Max 15mm 24/12 0.65 PMB-07 0 44 Max 20mm 24/20 1.19 PMB-09 0 106 Max 30mm 24/18 2.40 PMB-11

OGURA PHT-30D 23621200 27 16mm 0/0 5x18.3mm 7.93 PHT-70D 23622300 62 16mm 0/0 5x18.3mm 17.40 PHT-0.02S 25293000 0.027 3mm shaft 0/0 D shaft 0.13 PHT-1.2D 25295100 1.8 6mm 0/0 Set screw 0.66 PHT-0.05S 25297000 0.066 3mm shaft 0/0 D shaft 0.19 PHT-0.5S 25297100 0.49 6mm shaft 0/0 D shaft 0.19 PHT-2.5D 25297200 3.5 6mm 0/0 Set screw 1.25 PHT-5D 25297300 6.6 8mm 0/0 3x9.4mm 1.85 PHT-10D 25297400 13 15mm 0/0 5x17.3mm 3.52 PHT-0.02D 25384800 0.031 5mm shaft 0/0 D shaft 0.11 PHT-0.5D 25386400 0.44 8mm shaft 0/0 D shaft 0.32 PHT-0.05D

OGURA HB-1.2 25091700 1.1 6mm shaft 24/7.5 D shaft 1.90 HB-2.5 25091800 2.2 7mm shaft 24/10 D shaft 2.60 HB-5 25091900 4.4 8mm shaft 24/13 D shaft 5.00 HB-10 25092000 8.9 10mm shaft 24/18 D shaft 7.90 HB-0.5

OGURA HC-0.5 0 0.44 Shaft 10mm (in), 5mm 24/11 D-Shaft 1.00 HC-1.2 25091300 1.1 Shaft 12mm (in), 6mm 24/11 D shaft 1.50 HC-2.5 25091400 2.2 Shaft 14mm (in), 7mm 24/15 D shaft 2.20 HC-5 25091500 4.4 Shaft 16mm (in), 8mm 24/17 D shaft 3.70 HC-10

OGURA MDC-1.2 23162900 12.5 20mm 24/12 6x1.7 1.40 UN-1.2 23157000 0 0.00 MDC-2.5 23163000 26 25mm 24/17 8x1.7 4.40 UN-2.5 23157100 0 0.00 MDC-5 23163100 52 30mm 24/22 8x2 6.60 UN-5 23157200 0 0.00 MDC-10 23163200 104 40mm 24/36 12x2.5 10.56 UN-10 23157300 0 0.00 MDC-20 23163300 208 50mm 24/45 14x2.5 17.00 UN-20 23157400 0 0.00 MDC-40 23058900 413 60mm 24/50 18x3 34.00 UN-40 23168900 0 0.00 MDC-80 23059500 825 70mm 24/60 20x5 70.00 UN-80 23169000 0 0.00 MDC-160 23060100 1651 90mm 24/90 25x5 123.00 UN-160 23169100 0 0.00 UN-250 23169200 0 0.00 MDC-250 23175300 2580 100mm 24/110 28x6.5 0.00 MDC-320 23132100 3300 110mm 24/125 28x9 229.00 UN-320 23169300 0 0.00 MDC-450 23549600 4645 120mm 24/175 32x10 308.00 UN-450 23549800 0 0.00 MDC-600 23549700 6195 140mm 24/150 35x11 422.00 UN-600

OGURA MDB-1.2N 23666500 12.53 20mm 24/15 6x1.7 2.86 MDB-2.5N 23666600 25.81 25mm 24/19 8x1.7 3.74 MDB-5N 23666700 51.62 30mm 24/24 8x2 5.72 MDB-10N 23666800 103.23 40mm 24/35 12x2.5 8.80 MDB-20N 23666900 206.47 50mm 24/42 14x2.5 14.30 MDB-40N 23667000 412.94 60mm 24/60 18x3 26.40 MDB-80N

OGURA MWC-40 23015200 576 50mm 24/50 18x3 37.00 MWC-80 23031100 1152 70mm 24/60 20x5 70.00 MWC-160 23050200 2304 90mm 24/90 25x5 140.00 MWC-250 23062500 3688 100mm 24/110 28x6.5 174.00 UN-2.5 23157100 0 0.00 MWC-320 23078100 4608 110mm 24/125 28x9 230.00 MWC-600 23083300 8850 140mm 24/150 35x11 422.00 MWC-450 23084900 6640 120mm 24/175 32x10 208.00 MWC-20 23151600 288 50mm 24/45 14x2.5 17.00 MWC-10 23152700 144 40mm 24/36 12x2.5 10.50 MWC-1.2 23154000 18 20mm 24/12 6x1.7 3.00 MWC-2.5 23154900 36 25mm 24/17 8x1.7 4.40 MWC-5 23156000 72 30mm 24/22 8x2 6.60 UN-1.2 23157000 0 0.00 UN-5 23157200 0 0.00 UN-10 23157300 0 0.00 UN-20 23157400 0 0.00 UN-40 23168900 0 0.00 UN-80 23169000 0 0.00 UN-160 23169100 0 0.00 UN-250 23169200 0 0.00 UN-320 23169300 0 0.00 UN-450 23549800 0 0.00 UN-600

OGURA MWB-1.2 23123900 18 20mm 24/8 6x1.7 1.50 MWB-2.5 23124200 36 25mm 24/12 8x1.7 2.90 MWB-5 23124500 72 30mm 24/18 8x2 4.40 MWB-10 23124700 144 40mm 24/24 12x2.5 7.50 MWB-20 23125000 288 50mm 24/31 14x2.5 9.90 MWB-40 23125200 576 60mm 24/36 18x3 22.00 MWB-80 23125500 1152 70mm 24/45 20x5 42.00 MWB-160

OGURA OPL-0.3N 25256500 0.27 8mm shaft N/A N/A 0.19 OPL-0.6N 25256600 0.53 8mm shaft N/A N/A 0.19 OPL-1.2N 25256700 1.1 8mm shaft N/A N/A 0.21 OPL-1.8N 25256800 1.6 8mm shaft N/A N/A 0.23 OPL-1BN 25256900 0.89 8mm shaft N/A N/A 0.35 OPL-1.5BN 25257000 1.3 8mm shaft N/A N/A 0.35 OPL-2BN 25257100 1.8 8mm shaft N/A N/A 0.42 OPL-3BN 25257200 2.7 8mm shaft N/A N/A 0.42 OPL-4BN 25257300 3.5 8mm shaft N/A N/A 0.49 OPL-1.2R 25272500 1.1 8mm N/A N/A 0.06 OPL-0.6R 25273700 0.53 8mm N/A N/A 0.05 OPL-0.3R 25273800 0.27 8mm N/A N/A 0.05 OPL-1BR 25274900 0.89 8mm N/A N/A 0.26 OPL-1.5BR 25275000 1.3 8mm N/A N/A 0.26 OPL-2BR 25275100 1.8 8mm N/A N/A 0.33 OPL-3BR

OGURA OPC-20 23379900 18 12mm shaft 24/18 D shaft 2.80 OPC-40 23382000 35 12mm 24/22 Set screw 5.30 OPC-80 23384100 71 15mm 24/33 Set screw 6.80 OPC-10 25186500 8.9 7mm shaft 24/14 D shaft 1.80 OPC-5

OGURA OPB-40N 25230800 35 12mm shaft 24/9 Double D Flat 4.00 OPB-80N 25230900 71 15mm shaft 24/9 Double D Flat 6.60 OPB-5N 25231000 4.4 6mm shaft 24/6.4 Double D Flat 0.90 OPB-10N 25233000 8.9 7mm shaft 24/8.9 Double D Flat 1.50 OPB-20N

OGURA PC-2.5 39091600 18 20mm shaft 24/56 5x2 12.50 PC-5 39095000 36 25mm shaft 24/82 7x3 19.50 PC-1.2 39175700 8.8 15mm shaft 24/42 5x2 7.00 PC-20 39175900 144 35mm shaft 24/112 10x3 71.50 PC-10-02

OGURA PB-20-01 392140 148 35mm shaft 24/112 10x3.5 64.00 PB-2.5 39096100 18 20mm shaft 24/56 5x2 11.00 PB-5 39096200 36 25mm shaft 24/82 7x3 17.50 PB-10 39096300 72 30mm shaft 24/105 7x3 40.00 PB-1.2
